제품 상세

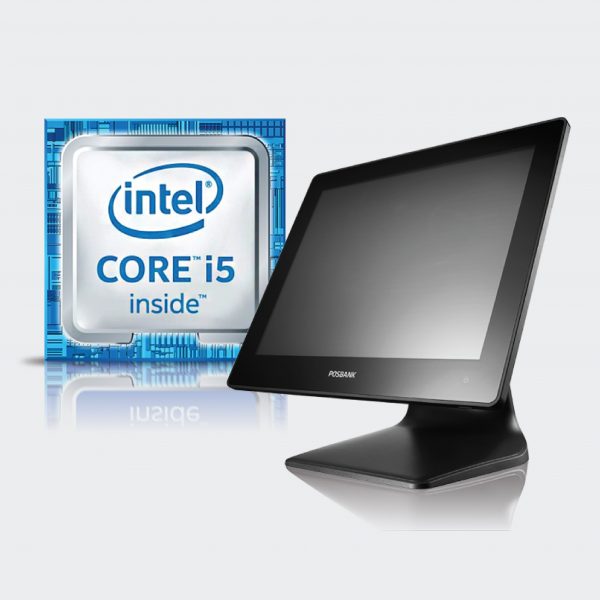

APEXA PRIME

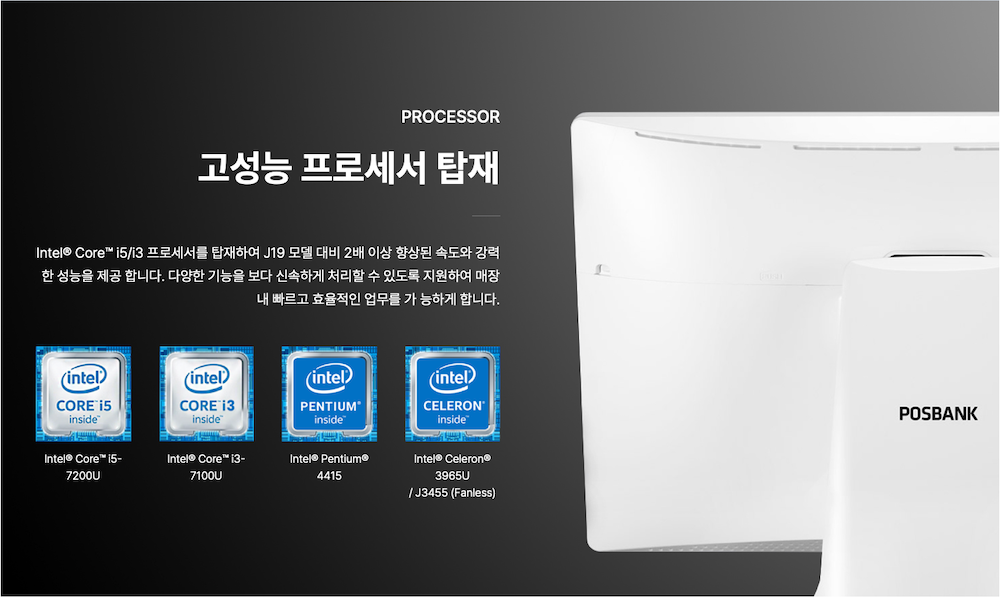

- 고성능 프로세서 탑재
- 현대적 디자인

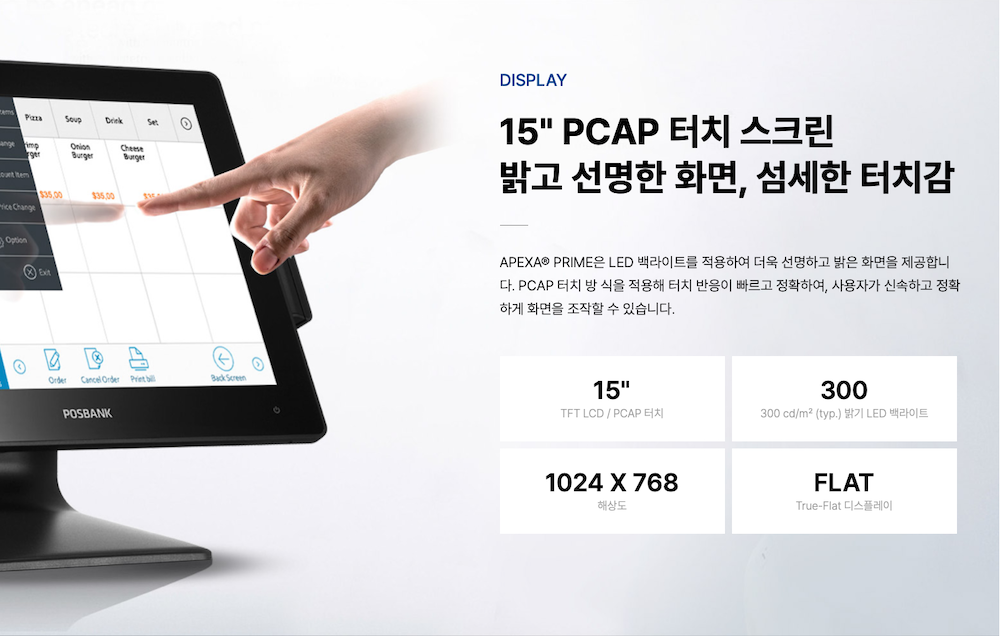

- PCAP 터치스크린

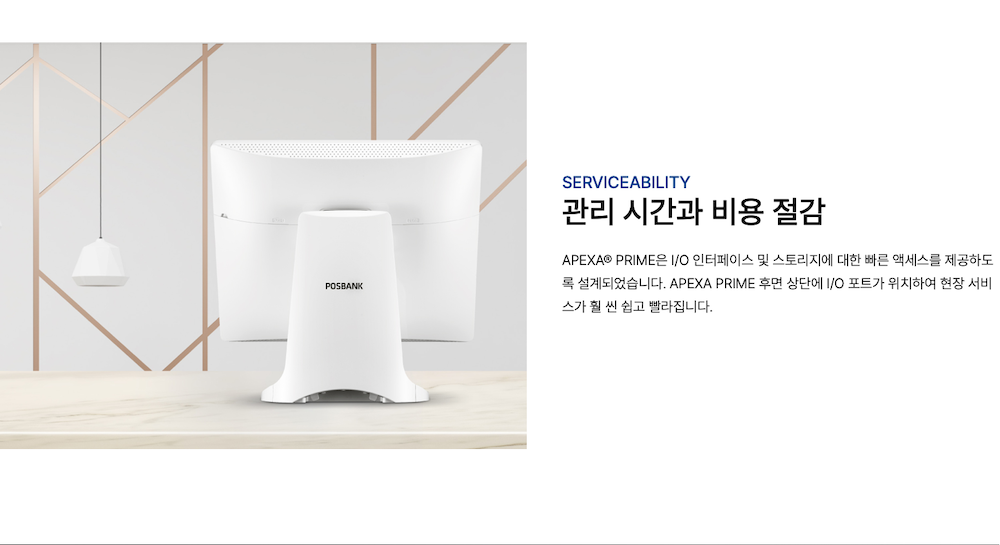

- 손쉬운 유지보수
제품사양
| General Specifications | |
|---|---|
| System | |
| Processor | Intel® Core™ i5-6200U Processor (3M Cache, 2.80 GHz) |
| Intel® Pentium® Processor 4405U (2M Cache, 2.10 GHz) | |
| Chipset | ITE Tech IT8786E |
| Memory | 4GB Standard, DDR4L 2133 MT/s, Socket 1 x SODIMM (Max. 16GB) |
| Storage | SATA 3 (6Gb/s) 2.5 inch SSD 64GB, Support AHCI |
| OS | Windows 7, Windows 8.1, Windows 10 IoT Enterprise, POS Ready 7 |
| Audio | Realtek ALC662-VD |
| Display | |
| Type | 15" TFT LCD, LED Backlight |
| Resolution | 1024 x 768 |
| Brightness | 300 cd/m² (typ.) |
| Touch Screen | Projective Capacitive Touch |

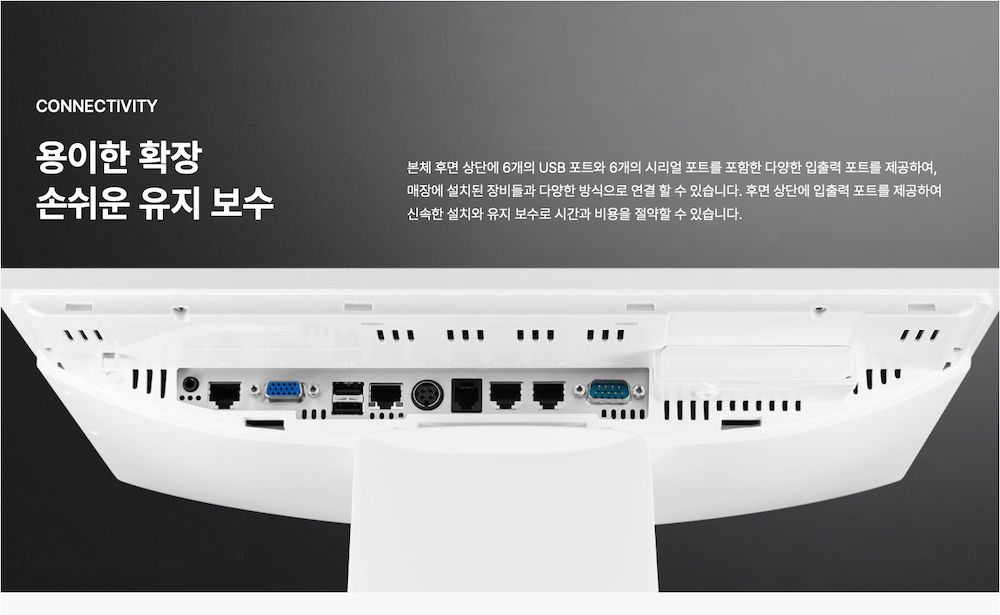

| Interface | |
| Display | 1 x VGA (With Power Output) |
| USB | 6 (Rear 2, Back 4, USB 3.0 x 2, USB 2.0 x 4) |
| 3 (Reserved for MSR, SCR, i-Button/Touch Controller/Camera), RJ-45 | |
| Serial Port | 6 (COM 1 with 5V/12V Power Output on 9 Pins, BIOS) |
| (COM2~3 RJ-45 , Full Signal) | |
| (COM4 RJ-11, Only TX/RX, 12V Power Output, Reserved for CDP) | |
| (COM5 Reserved for Cash Drawer Port) | |
| (COM6 RJ-45, Only TX/RX, 5V Power Output, Reserved for MSR) | |
| LAN | 1 x Gigabit Ethernet, RJ-45 |
| Audio | 1 x Line-out |
| Power DC-IN | 1 x (3 Pin Connector) |
| Extension Slot | mini PCIe, m-SATA |
| Power | |
| Power Supply | Adaptor 24V, 2A 24V, 4A(Powered USB Option) |
| Physical & Environmental | |
| Operating Temperature | 0 ℃ ~ 60 ℃ at 10% to 90% Humidity |
| Storage Temperature | -20 ℃ ~ 80 ℃ at 10% to 90% Humidity |
| Dimensions (WxHxD) | 364 x 333 x 210(mm), 14.3 x 13.1 x 8.2(in) |
| Packing Dimension (WxHxD) | 500 x 470 x 300(mm), 19.6 x 18.5 x 11.8(in) |
| Net Weight | 5,300g, 11.6lbs |
| Packing Weight | 8,000g, 17.6lbs |
| Certification | CE, FCC, KC, CB, CCC |
| Color | Matte Dark Grey, High Gloss White |
